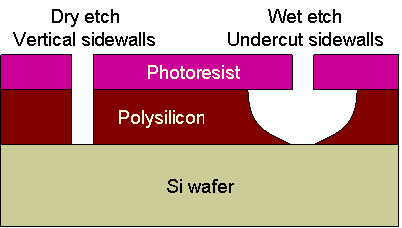

Plasma etch is preffered because of its anisotropy. To understand why, the limitations of isotropic etching are shown in the picture below:

  • for small structures, the resist can be lifted due for isotropical etch
  • for small openings the etchant cannot etch anymore
  • the structures have modified shape, no vertical walls as desired



  • Dry etching advantages over wet etching
    • Better control - easy to start and stop, just by closing the plasma (no bias applied)
    • Reproducible - not so dependent on temperature as is wet etching
    • High anisotropy - smaller structures can be made, and with vertical walls
    • Less chemical waste
